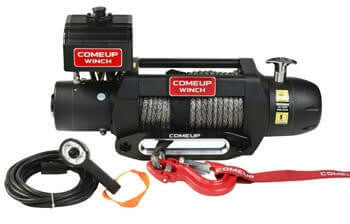

ComeUp Seal Gen2 9.5s Severe Duty Winch – 12V DC
The Seal Gen2 9.5s winch is a powerful and reliable 12V DC severe duty winch, specifically designed to handle demanding tasks with a rated pulling capacity of 9,500 lbs (4,309 kg). Built to meet or exceed industry standards, it offers a combination of advanced technology and robust construction to ensure maximum performance in tough environments.
Key Features:
- Heavy-Duty Motor: Equipped with a powerful 3,730-watt (5.0 hp) series wound motor, the winch also features a thermal switch to alert when the motor is overheating, ensuring longevity and safety during operation.
- Ergonomic Clutch: The clutch comes with 16 equally positioned pinholes and a stainless steel ergonomic T-handle, allowing for repositioning in 22.5° increments for seamless operation.
- Waterproof Remote Control: The winch includes a waterproof remote control with a thermometric LED indicator and a 5-meter (17-foot) cord, ensuring ease of use in various conditions.
- Durable Synthetic Rope: The synthetic rope is constructed with 12 strands and coated to improve abrasion resistance. It also features zero water absorption, making it ideal for wet environments.
- Tough Housing: The aluminum die-cast housing provides a sturdy exterior, built to withstand loads up to 2.0 times the rated winch capacity.
- Advanced Brake System: The patented mechanical cone brake located outside the drum expedites heat dispersion, making the winch perfect for use with synthetic ropes.
- Complies with Safety Standards: The winch meets SAE J706, CE Machinery Directive 2006/42/EC, and CE Electromagnetic Compatibility Directive 2004/108/EC for top-tier performance and safety.
Specifications:
- Rated Line Pull: 9,500 lbs (4,309 kg) single line
- Motor: 3,730 W (5.0 hp), 12V series wound
- Gear Ratio: 3-stage planetary, 159:1
- Clutch: Rotating ring gear with ergonomic T-handle
- Brake: Automatic, full load Cone Brake Structure (CBS) outside the drum
- Winch Construction: Aluminum die-cast housing with steel drum
- Control: Waterproof remote with thermometric LED indicator (5-meter cord)
- Rope: 10 mm x 30.5 m (3/8” x 100’) synthetic rope
- Winch Weight: 28.5 kg (62.5 lbs) including the rope
- Finish: Matte black powder-coated for corrosion resistance
Performance:
The Seal Gen2 9.5s winch is engineered for precision and durability, capable of handling demanding tasks with ease. The high-performance motor, coupled with a reliable synthetic rope and advanced braking system, ensures smooth operation, even under heavy loads. The winch is ideal for off-road recovery, heavy-duty towing, and other commercial or recreational applications.
Additional Accessories:
- Hawse fairlead
- Remote control with a 5-meter (17-foot) cord
- Detachable control box
- Synthetic rope with sling hook
- 1.8-meter (6-foot) 2-gauge battery lead
- Handsaver strap
- Optional winch accessory kit available
Important Notes:
- The winch is not designed for lifting or moving persons.
- Ensure that at least 10 wraps of rope remain on the drum during operation for safe use.
Warranty:
- Mechanical Components: Limited lifetime warranty
- Electrical Components: Three-year warranty
- Please note that synthetic ropes are not covered under warranty.
The Seal Gen2 9.5s winch is built to handle the toughest challenges, combining cutting-edge features with robust construction to provide reliable performance in every situation. Whether you're in the field or tackling off-road adventures, this winch is designed to get the job done.
